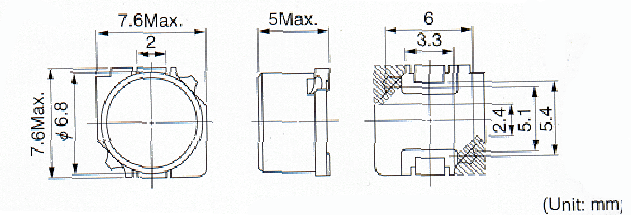

FCC-7605 SERIES
|
|
SMT POWER INDUCTORS |
|
| * Available
in surface mount packaging |
|
| * Low profile
|
|
| * Suitable
for reflow soldering |
|
| * Magnetically
shielded |
|
|
|
|
Part |
Inductance |
DC. R |
Rated Current |
|
|
Number |
(uH¡¾25%)
|
(§Ù max.) |
(A max.) |
Typical
inductance vs. current |
|
FCC-7605-100 |
10 |
0.065 |
0.80 |
|
|
FCC-7605-120 |
12 |
0.095 |
0.70 |
|
FCC-7605-150 |
15 |
0.110 |
0.65 |
|
FCC-7605-180 |
18 |
0.125 |
0.60 |
|
FCC-7605-220 |
22 |
0.160 |
0.50 |
|
FCC-7605-270 |
27 |
0.180 |
0.47 |
|
FCC-7605-330 |
33 |
0.21 |
0.45 |
|
FCC-7605-390 |
39 |
0.27 |
0.42 |
|
FCC-7605-470 |
47 |
0.37 |
0.37 |
|
FCC-7605-560 |
56 |
0.40 |
0.35 |
|
FCC-7605-680 |
68 |
0.46 |
0.32 |
|
FCC-7605-820 |
82 |
0.60 |
0.30 |
|
FCC-7605-101 |
100 |
0.69 |
0.26 |
|
FCC-7605-121 |
120 |
0.79 |
0.24 |
|
FCC-7605-151 |
150 |
1.14 |
0.21 |
|
FCC-7605-181 |
180 |
1.24 |
0.19 |
|
FCC-7605-221 |
220 |
1.96 |
0.17 |
|
FCC-7605-331 |
330 |
2.40 |
0.15 |
|
|
| * Inductance
tested at 100KHz 0.1V. |
| * Operating
temperature : -40'C to +85'C |
