| Pulse, Drive Transformer | |||||||||||||||||||||||
| |||||||||||||||||||||||
| TYPE | SIZE | MATERIAL | FEATURE |
| RM CORE TYPE | 4, 5, 6, 8, 10, 12 | Mn-Zn Ferrite Ni-Zn Ferrite |

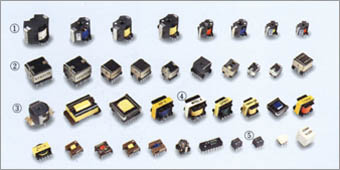

Fig.¨ç |
| EP CORE TYPE | EP 7, 10, 13, 17, 20 | Mn-Zn Ferrite | Fig.¨è |
| POT CORE TYPE | POT 9/5, 14/8, 18/11 26/16, 30/19 |
Mn-Zn Ferrite Ni-Zn Ferrite |
Fig.¨é |
| EI, EE CORE TYPE (mm) | EE 8.9, 13, 16, 19, 22, 25, 28, 30 | Mn-Zn Ferrite | Fig.¨ê |
| TOROIDAL TYPE(ø) | 2.7 ~ 30 | Mn-Zn Ferrite Amorphous |
Fig.¨ë |
