PERMALLOY CORE
CORE TYPE
|
||
EX TYPE |
EI TYPE |
EE TYPE |

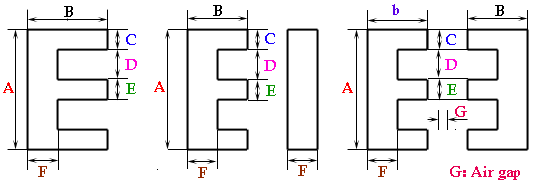

CORE DIMENSIONS
TYPE |
PART NO |
GRADE |
THICK |
A |
B/b |
C |
D |
E |
F |
G |
EX-14 |
PB |
0.35 |
14 |
10.6 |
1.76 |
3.5 |
3.5 |
1.65 |
/ |
|
PC |
0.35 |
|||||||||
EX-16 |
PB |
0.35 |
16 |
14 |
2 |
4 |
4 |
2 |
/ |
|
PC |
0.35 |
|||||||||
EX-19 |
PB |
0.35 |
19 |
15 |
2.375 |
4.75 |
4.75 |
2.5 |
/ |
|
PC |
0.35 |
|||||||||
EX-186 |
PB |
0.35 |
19.08 |
8.75 |
2.835 |
4.77 |
4.77 |
2.4 |
/ |
|
PC |
0.35 |
|||||||||
EL-16 |
PC |
0.20 |
16 |
16 |
2.3 |
3.3 |
4.8 |
2.4 |
/ |
|
PC |
0.35 |
16 |
16 |
2.4 |
3.2 |
4.8 |
2.4 |
/ |
||
EX-24 |
PC |
0.35 |
24 |
18 |
3 |
6 |
6 |
3 |
/ |
|
EX-2425 |
PC |
0.20 |
25.4 |
19.05 |
3.175 |
6.35 |
6.35 |
3.175 |
/ |
|
PC |
0.35 |
|||||||||
EE-2425 |
PB |
0.35 |
25.4 |
12.7/ |
3.175 |
6.35 |
6.35 |
3.175 |
/ |
|
PC |
0.35 |
|||||||||
EE-2425(G) |
PB |
0.35 |
25.4 |
12.7/ |
3.175 |
6.35 |
6.35 |
3.175 |
0.09 |
|
PC |
0.35 |
|||||||||
EE-16 |
PC |
0.15 |
16 |
11/5 |
2.4 |
3.2 |
4.8 |
2.4 |
/ |
|
0.35 |
||||||||||
PB |
0.35 |
|||||||||
EI-19E |
PB |
0.35 |
19 |
12.5 |
2.375 |
4.75 |
4.75 |
2.5 |
/ |
|
PC |
0.35 |
|||||||||
EI-19I |
PB |
0.35 |
19 |
/ |
/ |
/ |
/ |
2.5 |
/ |
|
PC |
0.35 |
|||||||||
EI-24E |
PB |
0.35 |
24 |
15 |
3 |
6 |
6 |
3 |
/ |
|
PC |
0.35 |
|||||||||
EI-24I |
PB |
0.35 |
24 |
/ |
/ |
/ |
/ |
3 |
/ |
|
PC |
0.35 |
|
